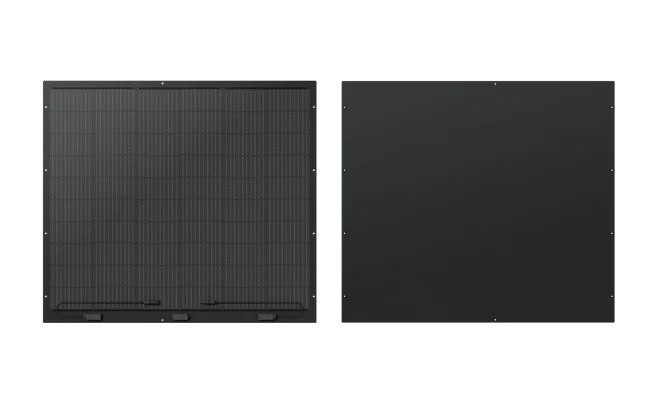

Jackery 4x 200W Flexible Solar Panel

The Jackery 4x 200W flexible solar panels offer a powerful and versatile solution for renewable energy. Ideal for a variety of applications, from balconies to RVs, these ultra-lightweight panels combine flexibility with robust performance.

Benefits of the Jackery 4x 200W Flexible Solar Panels

Ultra-light and easy to install: Weighing just 3.2 kg – about 1/3 the weight of traditional 200W glass modules – these panels are easy to handle and assemble.
Flexible and versatile: Thanks to the reinforced polymer construction , the panels are flexible and can be used in different situations, such as on curved surfaces of motorhomes or boats.
Durable and weatherproof: These solar panels are wear-resistant, age-resistant, and have an IP68 water and dust rating, which means they can withstand rain, snow, and even hailstorms.
Easy installation: The panels can be flexibly installed with ropes or Velcro, making them suitable for balconies, RVs, and off-grid situations.
Long-Term Warranty and Efficiency: Jackery offers a comprehensive 12-year warranty and guarantees 85% output efficiency for more than 25 years, ensuring reliable long-term performance.

Technical specifications Jackery 4x 200W Flexible Solar Panels

Maximum power: 4x 200W (total 800W)
Weight per panel: 3.2 kg per solar panel
Protection level: IP68 waterproof and dustproof
Warranty: 12 years with 85% output efficiency for more than 25 years
Installation method: Flexible to mount with ropes or Velcro

Electrical properties

Max. power - Pmax (W): 200 ±5%
Voltage at Pmax - Vmp (V): 34.71
Current at Pmax - Imp (A): 5.93
Open terminal voltage - Voc (V): 41.64 ±5%
Short circuit current - Isc (A): 6.22 ±5%
Modulation efficiency - ηm (%): 16.9
Power tolerance (W): (0.±5)
Max. system voltage (VDC): 1500 (IEC)
Max. fuse rating in series (A): 25

Mechanical Specifications

Dimensions (mm): 1172 x 1026 x 2
Weight (kg): 3.2 per solar panel
Solar cells: Monocrystalline silicon (182 mm half-cell)
Frame: Frameless
Protection class junction box: IP68
Output cable: 4.0 mm², 450 mm (+), 450 mm (-)
Junction: MC4 compatible

Temperature properties

Pmax temperature coefficient (%/°C): -0.34
Voc temperature coefficient (%/°C): -0.26
Isc temperature coefficient (%/°C): 0.033
Operating temperature (°C): -40 to +85
Module Rated Operating Temperature (NMOT) (°C): 41 ±2
